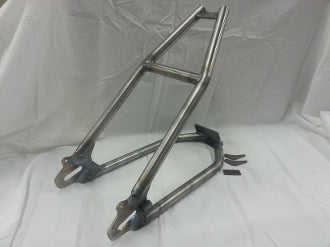

82-03 Sportster Weld On Hardtail Stock tire and brake works!

1982-2003

HARLEY SPORTSTER

Narrow HARDTAIL for 130/150 tire

Frame stretch 2 1/2"

Approximately 4" of ground clearance depending on what tire you use.

DOES NOT require removing your engine! This hardtail bolts on to your bike on the bottom through the rear engine/transmission mounts to help align it and welds to the top AND the bottom via a set of curved gussets that fit your frame. It also welds together behind the battery box. VERY STRONG. You have the welder fired up to weld the top, why not weld the bottom too! You can with our kit! CNC cut gussets come with the hardtail section that flow with the curve of your frame for a perfect fit and easy weld. This is MUCH stronger than just bolting it!

The lines are perfect on this hardtail, with the top tubes flowing at the perfect angle to compliment the rest of the bike. These are made IN HOUSE by us! The frames are made from 1 1/4" D.O.M. Tubing. The frame stretches the wheel base approximately 2 1/2" and will fit a 130 to 150 tire using your stock pulleys or you can do a chain conversion. (NOTICE: We sell a different frame that will accommodate up too a 200mm tire!)  Approximately 4" of ground clearance depending on what tire you use.

Your stock brake will work!

Oil tank and mount are not included, but are available separately, as well as fenders, sissy bars, seats, seat springs, seat hinges, battery boxes, longer belts, chain conversions, etc. We can set you up with everything you need!

Check out our video blog on detailed information on how to install this kit.
